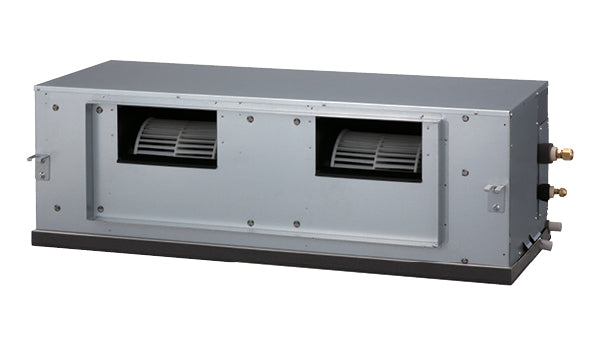

Fujitsu R32 High Static Series 1Ph Ducted System Reverse Cycle | 8.5 kW | Whole Home Cooling & Heating
Fujitsu R32 High Static Series 1Ph Ducted System Reverse Cycle | 8.5 kW | Whole Home Cooling & Heating
SKU:ARTH30KHTA
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping fee will calculated at check out.
We guarantee that orders placedΒ before 11 amΒ will be dispatched theΒ same day (subject to stock availability),Β exclude weekendsΒ and holidays.Β After receiving your order confirmation message,Β you will receive another notification when your order has shipped.
Fujitsu R32 High Static Series Overview
Key Features
-
High Static Pressure Performance
β’ Designed for larger ducted applications and extended duct runs.
β’ Ensures powerful, consistent airflow across multiple rooms and zones.
-
Flexible Zoning Capability
β’ Supports a wide range of ducting and zoning options.
β’ Perfect for multi-room homes, offices, and commercial spaces.
-
R32 Refrigerant
β’ Lower global warming potential compared to R410A.
β’ High energy efficiency with reduced environmental impact.
-
Advanced Inverter Technology
β’ Variable speed operation maintains stable temperatures.
β’ Reduces running costs while maximizing comfort.
-
Quiet Yet Powerful
β’ Engineered for strong performance with minimized noise.
β’ Suitable for both residential and light commercial environments.
Ideal Users
-
Large Homes & Multi-Room Installations
β’ High static pressure ensures airflow across multiple outlets.
-
Light Commercial Applications
β’ Offices, retail shops, and other commercial spaces needing reliable comfort.
-
Energy-Conscious Property Owners
β’ R32 refrigerant and inverter operation reduce energy costs.
-
Users Requiring Flexible Zoning
β’ Supports complex ducting layouts and advanced zoning systems.
Installation & Maintenance
β’ Designed for flexibility in larger ducted installations.
β’ Easy access for servicing and filter cleaning.
β’ Fujitsuβs comprehensive 5-year parts and labor warranty.
For more details, visit the Fujitsu General Air Conditioning website.
*Handling day around 2-3 business days
Β
Details
| Cooling Capacity | Heating Capacity | Airflow (High) | Noise Level (Indoor / Outdoor) |
|---|---|---|---|
| 7.1 kW | 8.0 kW | 1,280 mΒ³/h | 34 / 49 dB(A) |
| 8.5 kW | 9.0 kW | 1,500 mΒ³/h | 35 / 50 dB(A) |
| 10.0 kW | 11.2 kW | 1,720 mΒ³/h | 36 / 51 dB(A) |
| 12.5 kW | 14.0 kW | 2,000 mΒ³/h | 37 / 52 dB(A) |
| 14.0 kW | 16.0 kW | 2,250 mΒ³/h | 38 / 53 dB(A) |
| 15.5 kW | 18.0 kW | 2,500 mΒ³/h | 39 / 54 dB(A) |
Specification
Specification
| Indoor unit | ARTH30KHTA |
|---|---|
| Outdoor unit | AOTH30KBTA |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Cooling Capacity kW (Rated (Min - Max)) | 8.50 (2.8 - 10.3) |
| Heating Capacity kW (Rated (Min - Max)) | 10.00 (2.7 - 11.3) |
| Input Power Cooling kW (Rated (Max)) | 2.35 (3.47) |
| Input Power Heating kW (Rated (Max)) | 2.35 (4.12) |
| EER Cooling kW/kW | 3.62 |
| COP Heating kW/kW | 4.26 |
| Star Rating Cooling (0-10) (Hot / Average / Cold) | 3 / 2.5 / 3 |
| Star Rating Heating (0-10) (Hot / Average / Cold) | 3 / 2.5 / 2 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.695 / 4.469 / 4.637 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 4.61 / 4.211 / 3.654 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.982 / 5.065 / 5.397 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.6 / 4.35 / 3.895 |
| Running Current amps (Cooling / Heating) | 10.4 / 10.4 |
| Moisture Removal l/hr | 0.1 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 41 / 36 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 41 / 36 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 51 / 53 |
| Outdoor Sound Power dBA | 69 |
| Static Pressure Range PA (Min to Max) | 60 to 210 |
| Air Circulation (Indoor - High Fan) Cooling l/sec | 695 |
| Air Circulation (Indoor - High Fan) Heating l/sec | 695 |
| Indoor Unit Dimensions mm (HxWxD) | 400 x 1050 x 500 |
| Indoor Unit Weight kg | 39.00 |
| Outdoor Unit Dimensions mm (HxWxD) | 788 x 940 x 320 |
| Outdoor Unit Weight kg | 52.00 |
| Piping Connects mm Γ (Liquid / Gas) | 9.52 / 15.88 |
| Pipe Length m (Max (Precharged)) | 50 (30) |
| Max Height Difference m | 30 |
| Operation Range Cooling Β°CDB (Min to Max) | -10 to 50 |
| Operation Range Heating Β°CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 1,900 |
