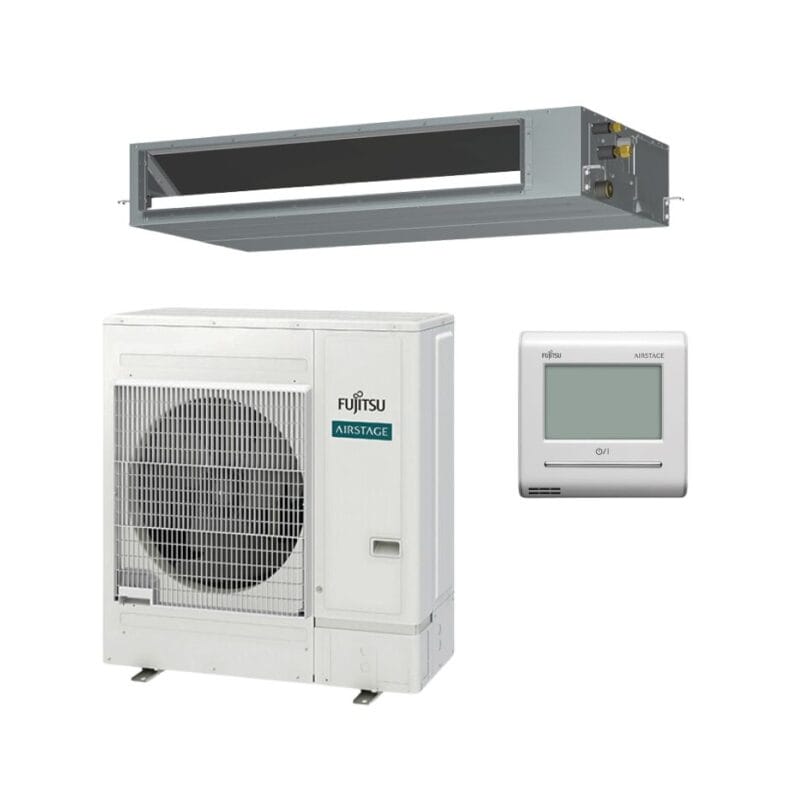

Fujitsu R32 Mid Static Slimline Series 1Ph Ducted System Reverse Cycle | 10 kW | Whole Home Cooling & Heating
Fujitsu R32 Mid Static Slimline Series 1Ph Ducted System Reverse Cycle | 10 kW | Whole Home Cooling & Heating
SKU:ARTH36KMTAP/AOTH36KBTA
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping fee will calculated at check out.
We guarantee that orders placed before 11 am will be dispatched the same day (subject to stock availability), exclude weekends and holidays. After receiving your order confirmation message, you will receive another notification when your order has shipped.
Fujitsu R32 Mid Static Slimline Series Overview
Key Features
-
Slimline & Compact Design
• Ultra-low profile ideal for tight ceiling and bulkhead spaces.
• Provides discreet, ducted comfort without compromising performance.
-
Mid Static Pressure Performance
• Delivers strong airflow for multiple rooms.
• Flexible ducting options make it suitable for varied layouts.
-
R32 Refrigerant
• Lower global warming potential than R410A.
• Energy-efficient and environmentally conscious choice.
-
Inverter Technology
• Adjusts compressor speed for consistent comfort.
• Reduces power consumption and running costs.
-
Quiet & Efficient
• Low indoor and outdoor noise levels.
• Comfortable operation for both residential and light commercial use.
Specifications Overview
| Cooling Capacity | Heating Capacity | Airflow (High) | Noise Level (Indoor/Outdoor) |
|---|---|---|---|
| 5.0 kW | 6.0 kW | 840 m³/h | 30 / 48 dB(A) |
| 7.1 kW | 8.0 kW | 1,080 m³/h | 32 / 49 dB(A) |
| 8.5 kW | 9.0 kW | 1,260 m³/h | 34 / 50 dB(A) |
| 10.0 kW | 11.2 kW | 1,500 m³/h | 35 / 51 dB(A) |
| 12.5 kW | 14.0 kW | 1,800 m³/h | 36 / 52 dB(A) |
| 13.0 kW | 15.0 kW | 2,040 m³/h | 37 / 53 dB(A) |
Specifications may vary by region and installation conditions.
Ideal Users
-
Homes with Limited Ceiling Space
• Slimline design ensures installation flexibility.
-
Multi-Room Applications
• Mid static pressure supports longer duct runs and multiple outlets.
-
Energy-Conscious Buyers
• Inverter technology and R32 refrigerant reduce costs and impact.
-
Small to Medium Commercial Spaces
• Reliable comfort for offices, shops, and light commercial settings.
Installation & Maintenance
• Flexible ducting for different layouts and zones.
• Easy access to filters and components for simple servicing.
• Fujitsu’s 5-year parts and labor warranty provides peace of mind.
For more details, visit the Fujitsu General Air Conditioning website.
*Handling day around 2-3 business days
Specification
Specification
| Indoor unit | ARTH36KMTAP |
|---|---|
| Outdoor unit | AOTH36KBTA |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Cooling Capacity kW (Rated (Min - Max)) | 10.00 (2.8 - 11.4) |
| Heating Capacity kW (Rated (Min - Max)) | 11.20 (2.7 - 14) |
| Input Power Cooling kW (Rated (Max)) | 3.23 (4.3) |
| Input Power Heating kW (Rated (Max)) | 3.3 (4.5) |
| EER Cooling kW/kW | 3.1914 |
| COP Heating kW/kW | 3.7299 |
| Star Rating Cooling (Hot / Average / Cold) | 2.5 / 2.5 / 2.5 |
| Star Rating Heating (Hot / Average / Cold) | 3 / 2 / 1.5 |
| Total Cooling SPF Residential (Hot / Average / Cold) | 4.338 / 4.141 / 4.359 |
| Heating SPF Residential (Hot / Average / Cold) | 4.568 / 3.815 / 3.201 |
| Total Cooling SPF Commercial (Hot / Average / Cold) | 4.635 / 4.781 / 5.14 |
| Heating SPF Commercial (Hot / Average / Cold) | 4.583 / 4.139 / 3.467 |
| Running Current amps (Cooling / Heating) | 13.6 / 13.9 |
| Moisture Removal l/hr | 2.9 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 38 / 27 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 38 / 27 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 53 / 53 |
| Outdoor Sound Power dBA | 70 |
| Static Pressure Range PA (Min to Max) | 50 to 150 |
| Air Circulation Indoor High Fan (Cooling / Heating) l/sec | 575 / 575 |
| Indoor Unit Dimensions mm (HxWxD) | 240 x 1400 x 700 |
| Indoor Unit Weight kg | 42.00 |
| Outdoor Unit Dimensions mm (HxWxD) | 788 x 940 x 320 |
| Outdoor Unit Weight kg | 52.00 |
| Piping Connects mm Ø (Liquid / Gas) | 9.52 / 15.88 |
| Pipe Length m (Max / Precharged) | 50 (30) |
| Max Height Difference m | 30 |
| Operation Range Cooling °CDB (Min to Max) | -10 to 50 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 1,900 |
